SOAR977-TH675A52
Innovative Hzsoar's 25~225mm Ultra Long Range Thermal Camera for Precision Marine Applications
Features:
- Dual Payload system
- Starlight optical Camera with 1/1.8″ Cmos sensor, 317mm lens, 52x Zoom
- High Resolution Thermal Imaging?Sensor 640×512 Thermal Resolution with 75mm Lens
- 360° omnidirectional high-speed PTZ; ±90° Tilt range
- Built-in heater/fan,?allows the withstand the harshest climates
- Gyro Stabilisation, 2 axis
- Marine rated design
- Onvif Support
Integrate a variety of AI algorithms suitable for a variety of scenarios

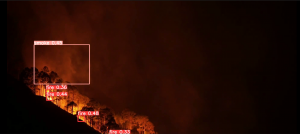

*Fire smoke detection:visible light and thermal imaging combined judgment high accuracy
*Ship/boat detection and auto tracking:both visible and thermal channel
*Vessel tracking and identification of hull number:Large scene remote automatic search

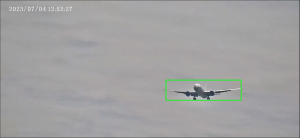

*Automatic tracking of aircraft and drones:Stable tracking at night,suitable for airports protection,drone prevention

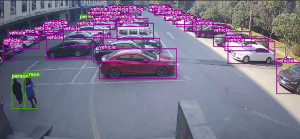

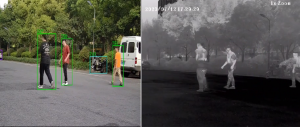

*Simultaneous recognition:person,vehicles,non-motor vehicles:visible light,thermal imaging combined judgement
*Ship/boat detection and auto tracking:both visible and thermal channel
*Vessel tracking and identification of hull number:Large scene remote automatic search
*Automatic tracking of aircraft and drones:Stable tracking at night,suitable for airports protection,drone prevention
*Simultaneous recognition:person,vehicles,non-motor vehicles:visible light,thermal imaging combined judgement
https://www.youtube.com/watcht0Rd5zt1sThe payload system of this thermal camera is a unique combination of thermal and optical camera systems. The thermal camera allows for detection and identification of objects based on their heat signature, while the optical camera provides clear, detailed images, even in starlight. This dual payload system makes the 25~225mm Ultra Long Range Thermal Camera a versatile and invaluable tool for marine applications. Hzsoar’s commitment to quality and innovation is reflected in the design and performance of this marine thermal camera. Its impressive capabilities and features elevate it above other options in the market, making it a preferred choice for those seeking high-quality, reliable marine surveillance solutions. Experience the difference with Hzsoar's 25~225mm Ultra Long Range Thermal Camera.
Model No. | SOAR977-TH675A52 |
Thermal Imaging Camera | |
Detector | Uncooled amorphous silicon FPA |
Array format/Pixel pitch | 640×512 /12μm |
Sensitivity | ≤60mk@300K |
Image Frame Rate | 50 HZ(PAL)/60HZ(NTSC) |
Spectral range | 8-14μm |
Image definition | 768×576 |
Lens | 75 mm |
FOV | 8.3°x6.2° |
Digital Zoom | 1x，2x，4x |
Pseudo color | 9 Psedudo Color palettes changeable; White Hot/black hot |
Detecting Range | Human:2200m |
| ? | Vehicle:10000m |
Recognition Range | Human:550m |
| ? | Vehicle:2500m |
Daytime Camera | |
Image Sensor | 1/1.8” Progressive Scan CMOS |
Min. Illumination | Color:0.0005 Lux @(F1.4,AGC ON); B/W:0.0001Lux @(F1.4,AGC ON); |
Focal Length | 6.1-317mm; 52x optical zoom |
Aperture Range | F1.4-F4.7 |
Field of View | H: 61.8-1.6° (wide-tele) |
| ? | V:?36.1-0.9° (wide-tele) |
Working Distance | 100-2000mm (Wide-Tele) |
Zoom Speed | Approx. 6 s (optical lens, wide-tele) |
Video Compression | H.265 / H.264 / MJPEG |
Resolution | 1920 × 1080 |
BLC | Support |
Exposure Mode | Automatic exposure/aperture priority/shutter priority/manual exposure |
Focus Control | Auto focus/one-time focus/manual focus |
Area Exposure/Focus | Support |
Defog | Support |
EIS | Support |
Compatibility | Onvif 2.4 |
Gyro stabilization | |
Stabilization | Support 2 Axis |
Static Accuracy | <0.2°RMS |
Mode | ON/OFF |
Pan/Tilt | |
Pan Range | 360° (endless) |
Pan Speed | 0.05°/s ~ 500°/s |
Tilt Range | –90° ~ +90° (auto reverse) |
Tilt Speed | 0.05° ~ 300°/s |
Number of Presets | 256 |
Patrol | 6 patrols, up to 18 presets per patrol |
Pattern | 4, with the total recording time not less than 10 mins |
General | |
Power | DC 124V, wide voltage input; Power consumption: ≤60w； |
COM/Protocol | RS 422/ PELCO-D/P |
Video Output | 1 channel Thermal Imaging video; Network video, via Rj45 |
1 channel HD video; Network video, via Rj45 | |
Working temperature | -40℃~60℃ |
Mounting | Mast mounting |
Ingress Protection | IP67 Protection Standard |

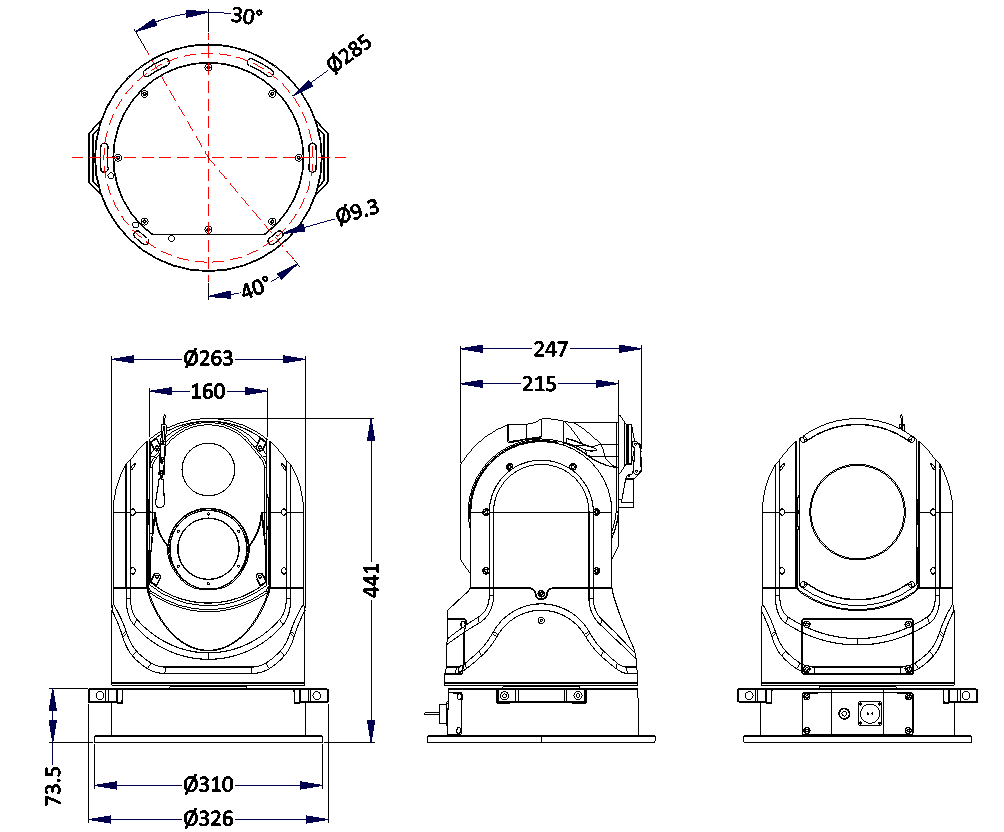

Dimension | φ265*425 mm |
Weight | 18 kg |
-
